The Key Parts of a RIB Boat (and How to Choose Them Like a Pro)

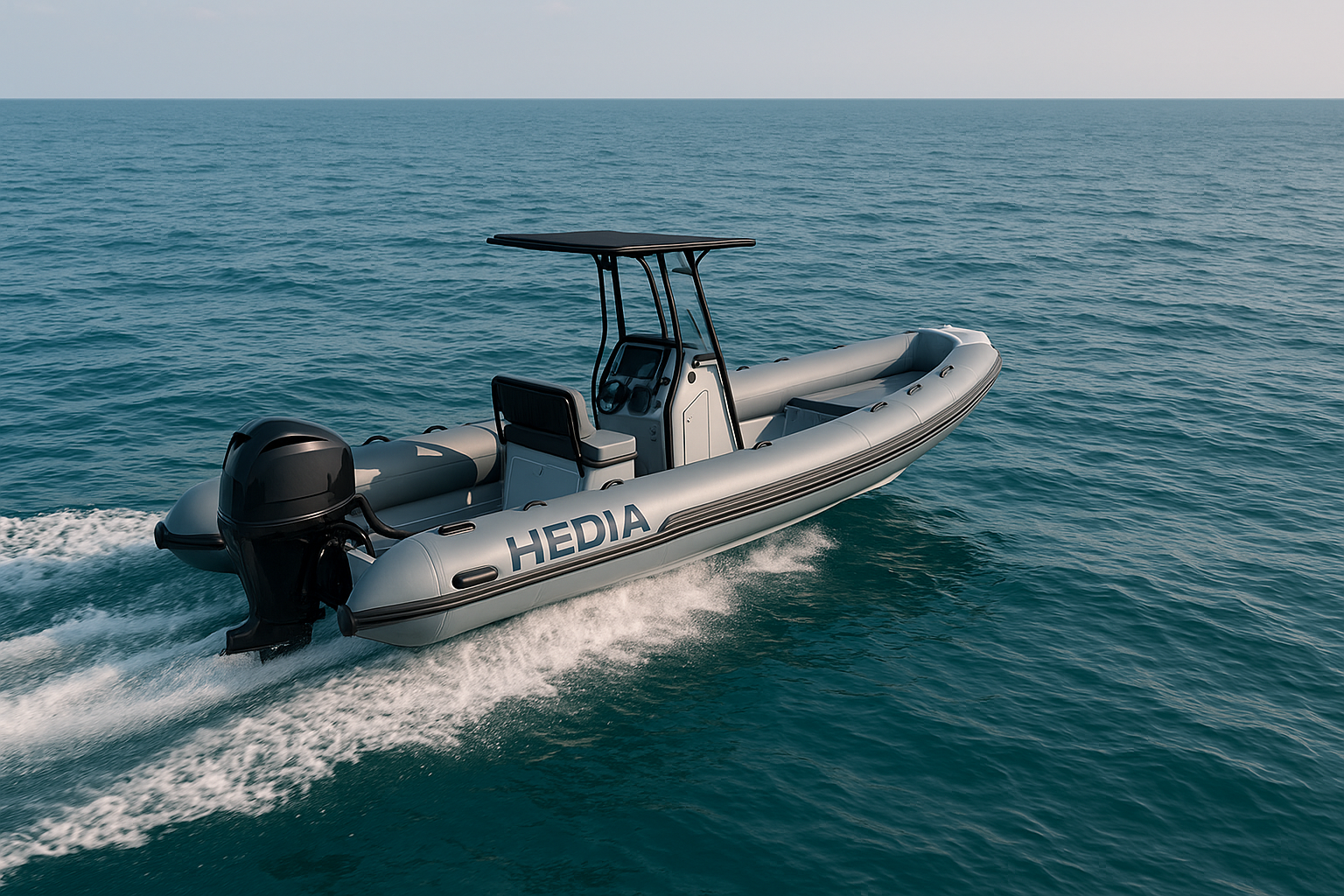

A RIB boat (Rigid Inflatable Boat) blends a rigid V-shaped hull with inflatable tubes for stability, speed, and safety. If you’re comparing options—or auditing a build from a rib boat manufacturer—use this guide to evaluate what matters most, especially for an aluminum rib boat like a Hedia boat.
1) Hull Geometry — the heart of performance
• Deadrise at transom (18°–24°): Higher = softer ride in chop; lower = better initial stability and fuel economy.
• Entry & bow flare: Sharp entry cuts waves; moderate flare sheds spray and keeps the deck dry.
• Chines (spray rails): Two or three well-defined chines improve lift, tracking, and dryness.
• Strakes: Add lift and reduce sticking on acceleration (better hole-shot).
• Keel & stringers: In aluminum hulls, closely spaced longitudinal stringers control flex and boost lifespan.
Why aluminum: impact resistance, repairability (weldable), flexible customization, and recyclability.
2) Tubes — the stability and safety buffer
Materials
• CSM/Hypalon: Best UV/chemical resistance; longer service life—ideal for hot, sunny markets.
• PVC: Budget-friendly; suitable for mild climates or indoor storage.
Specs to check
• Fabric weight: Commonly 1100D–1670D; higher = tougher.
• Tube diameter: 45–58 cm; larger = drier ride and more static stability.
• Air chambers: 4–7 depending on length; redundancy matters.
• Seam method: Heat-welded PVC, precision-bonded Hypalon—both should be neat and consistent.
• Inflation pressure: Typically 0.18–0.25 bar (2.6–3.6 psi); adjust for temperature/load.
3) Deck & Layout — usability and serviceability
• Self-bailing deck with one-way scuppers.
• Non-slip surface (PE/foam/cork) balanced for grip, comfort, and cleanability.
• Storage in anchor lockers, under seats, and inside the console.
• Fuel system with accessible inspection ports and anti-siphon protection.
• Electrics routed in protected conduits; main battery isolator and proper fusing.
4) Console, Helm & Seating — comfort and control
• Console height/angle for both standing and seated driving; prioritize clear sightlines.
• Ergonomics: Logical gauge cluster (speed, RPM, fuel, GPS/plotter/sonar).
• Seating: Shock-mitigating seats or supportive bench/leaning post for long runs.
• T-Top/Hard-top: Rigid aluminum frames with quick-release canvas for wind events.
• Grab points: Secure handholds within reach of every passenger.
5) Transom & Outboard — reliability under load
• Transom build: 8–12 mm marine aluminum plus gusseted knees for high-HP loads.
• Shaft length match: Correct S/L/XL relative to transom height prevents ventilation.
• Corrosion control: Proper anode placement and regular inspection in salt water.
• Prop selection: Aluminum (cost-effective) vs. stainless (durable/efficient). Choose pitch to hit WOT target at full load.
6) Quick spec ranges (typical, customizable)
| Length | TubeØ | Chambers | Deadrise | Hull Plates (Bottom/Sides) | Transom | Fuel (L) | HP Range | Typical Use |
| 4.2 m | 45–48 cm | 4–5 | 18–20° | 4 / 3 mm | 8–10 mm | 40–70 | 40–60 hp | Tender / entry leisure |
| 5.5 m | 48–52 cm | 5–6 | 19–22° | 5 / 4 mm | 10–12 mm | 80–110 | 90–140 hp | Family leisure / fishing |
| 6.5 m | 50–55 cm | 5–6 | 20–23° | 5–6 / 4–5 mm | 10–12 mm | 120–160 | 140–200 hp | Near-shore fishing / patrol |
| 7.5–9.6 m | 55–58 cm | 6–7 | 22–24° | 6 / 5 mm | 12 mm+ | 180–300 | 200–2×250 hp | Professional / fast cruising |
Powering rule: At full load, the rig should reach the engine maker’s WOT RPM window. If it can’t, reduce prop pitch or increase horsepower.
7) Performance tuning
• Hole-shot: Driven by prop choice, weight distribution, and strake geometry.
• Cruise efficiency: Target ~60–70% of WOT; optimize nautical miles per liter, not just peak speed.
• Noise/vibration in aluminum: Dampen via stringer density, isolation pads, and optional foam infill.
• Dryness: Chine angle plus tube flare keep spray down.
8) Buyer’s on-site checklist
• Welds: Uniform bead with clean “stack-of-dimes” appearance; no porosity/undercut.
• Plate certification: Marine-grade (e.g., 5083-H116/H321) clearly labeled; verify thickness at critical zones.
• Alignment: True keel centerline; symmetric chines; transom parallel to engine bracket.
• Electrics: Heat-shrink terminals, drip loops, tidy looms, complete negative return.
• Tubes: Pressure-test each chamber; smooth seams; brand graphics (e.g., HEDIA) placed and bonded cleanly.
• Sea trial: Time-to-plane, low-speed maneuvering, upwind/crosswind handling, emergency stop and restart.
9) Why Hedia Boat
Hedia Boat focuses on aluminum rib boat design and manufacturing:
• Structure: Marine aluminum, dense longitudinal stringers, reinforced transoms for high-HP reliability.
• Customization: Hypalon/PVC tubes, colorways, T-Top/roof options, console styles, layouts, single/dual engines, compliance for multiple markets.
• Brand enablement: Free design, free video, and real product photos to accelerate local marketing.
• After-sales: Export know-how and support programs up to 6 years (project-based).
Looking for a dependable rib boat manufacturer? A Hedia boat delivers a tougher hull, smarter ergonomics, and faster go-to-market for your brand.
10) Drop-in product copy (ready for your website)
• Marine-grade 5083-H116 aluminum hull with deep-V geometry for a dry, confident ride.
• Multi-chamber Hypalon/PVC tubes (45–58 cm) for outstanding stability and safety.
• Self-bailing deck with service-friendly fuel and electrical systems.
• Dealer-first assets: free design, videos, and real photos to grow your local brand.
• Hedia Boat — Make Your Brand Greater.
